Gauss-Radau Small-body Simulator (GRSS): An Open-source Library for Planetary Defense

  • Authors: Rahil Makadia, Davide Farnocchia, Steven R. Chesley, Siegfried Eggl

Rahil Makadia et al 2025 The Planetary Science Journal 6 .

  • Provider: AAS Journals

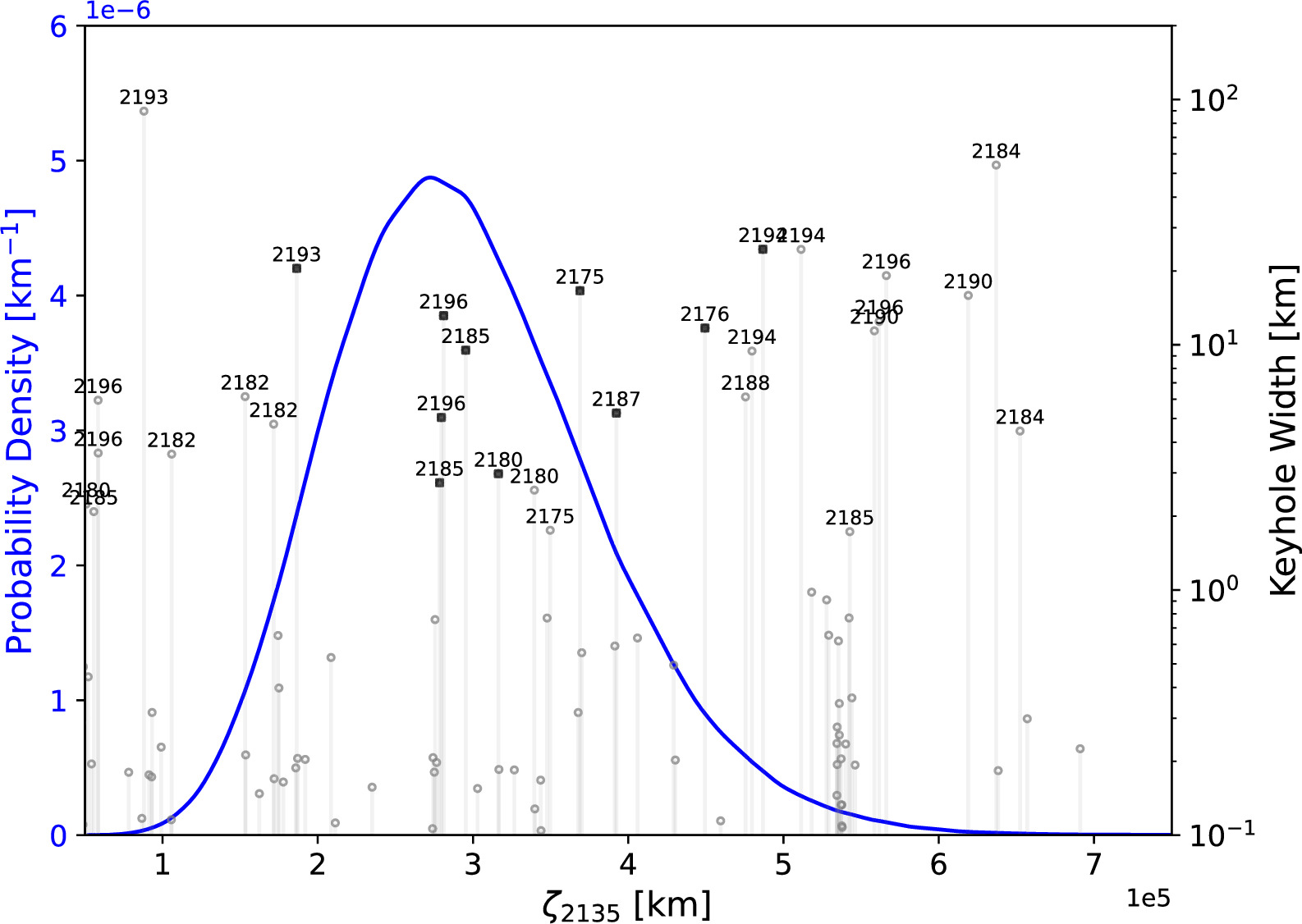

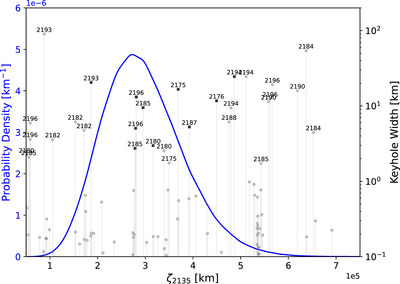

Caption: Figure 3.

Keyhole map for (101955) Bennu during its Earth close encounter in 2135. The left ordinate shows the probability distribution of the ζ coordinate on the Öpik B-plane. The right ordinate shows the width of the keyholes plotted using vertical bars. Keyholes with a width greater than 1 km are labeled with their corresponding impact years. In addition, keyholes with an impact probability greater than 10−5 are highlighted as filled squares. Note the different scales on the two ordinates.
