The BAGLE Python Package for Bayesian Analysis of Gravitational Lensing Events

  • Authors: J. R. Lu, Michael Medford, Casey Y. Lam, T. Dex Bhadra, Macy J. Huston, Natasha S. Abrams, Edward Broadberry, Jeff Chen, Sean K. Terry, Nijaid Arredondo, Andrew Scharf, Raphael A. P. Oliveira

J. R. Lu et al 2026 The Astronomical Journal 172 .

  • Provider: AAS Journals

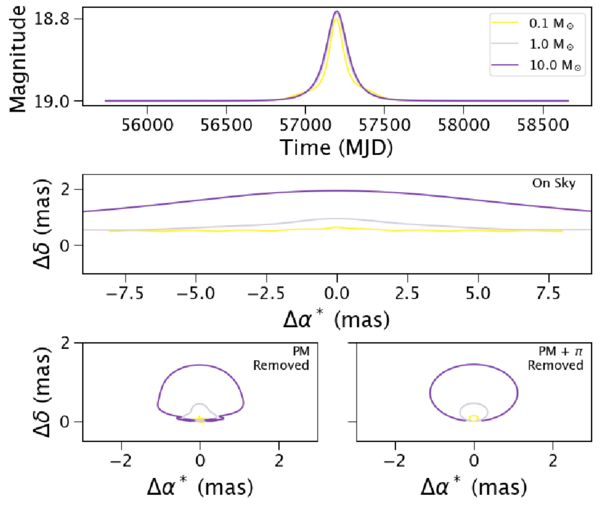

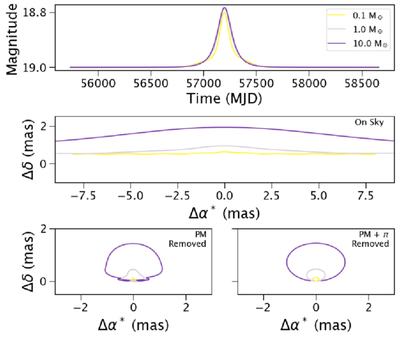

Caption: Figure 15.

The impact of changing the lens mass in BAGLE models for PSPL photometry (top) and astrometry (middle). Three models are shown (different colors) with similar lightcurves, but with different lens masses and with ﹩{\mu }_{{\rm{S}}}\propto 2.0{({M}_{{\rm{L}}}/0.1\,{M}_{\odot })}^{0.5}﹩ mas yr−1 and ﹩\beta \propto 0.5{({M}_{{\rm{L}}}/0.1\,{M}_{\odot })}^{0.5}﹩. The remaining model parameters include XS,0,⊙ = [0.0, 0.5] mas, μL,⊙ = [0, 0] mas yr−1, dL = 3 kpc, dS = 8 kpc, bSFF = 1, magS = 19, t0 = 57200 MJD, α = 262﹩\mathop{.}\limits^{\unicode{x000b0}}﹩5, and δ = −30°.
