The BAGLE Python Package for Bayesian Analysis of Gravitational Lensing Events

  • Authors: J. R. Lu, Michael Medford, Casey Y. Lam, T. Dex Bhadra, Macy J. Huston, Natasha S. Abrams, Edward Broadberry, Jeff Chen, Sean K. Terry, Nijaid Arredondo, Andrew Scharf, Raphael A. P. Oliveira

J. R. Lu et al 2026 The Astronomical Journal 172 .

  • Provider: AAS Journals

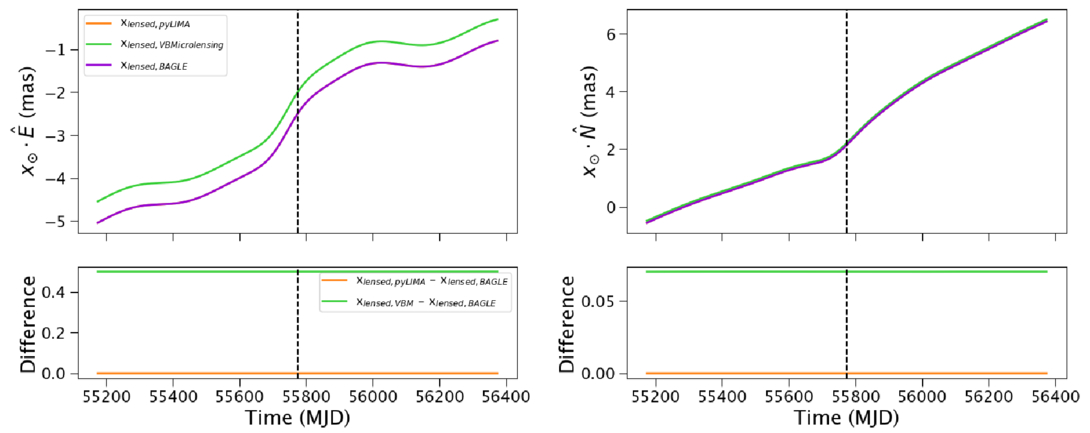

Caption: Figure 12.

Comparison between BAGLE, pyLIMA, and VBMicrolensing’s lensed image centroids for a simulated PSPL event with a parallax. The heliocentric SSB model parameters for this event are tE,⊙ = 100 days, u0,⊙ = 1.0, t0,⊙ = 55775 MJD, πE,E,⊙ = 0.2, πE,N,⊙ = 0.1, bsff  =  1, magS = 19, αL = 269﹩\mathop{.}\limits^{\unicode{x000b0}}﹩3, δL = −30﹩\mathop{.}\limits^{\unicode{x000b0}}﹩4, πS = 0.1 mas, θE = 3.0 mas, xS,0,E,⊙ = −3.0 mas, xS,0,N,⊙ = 3.0 mas, μS,E,⊙ = 1.0 mas yr−1, and μS,N,⊙ = 2.0 mas yr−1. Top: unresolved lensed image centroid in the east (left) and north (right) directions. Bottom: centroid difference between the pyLIMA or VBMicrolensing and BAGLE models.
