Haro 5-2: A New Pre-main-sequence Quadruple Stellar System

  • Authors: Bo Reipurth, C. Briceño, T. R. Geballe, C. Baranec, S. Mikkola, A. M. Cody, M. S. Connelley, C. Flores, B. A. Skiff, J. D. Armstrong, N. M. Law, R. Riddle

Bo Reipurth et al 2024 The Astronomical Journal 168 .

  • Provider: AAS Journals

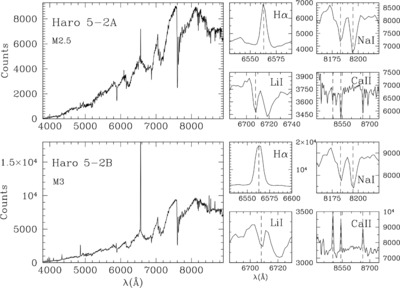

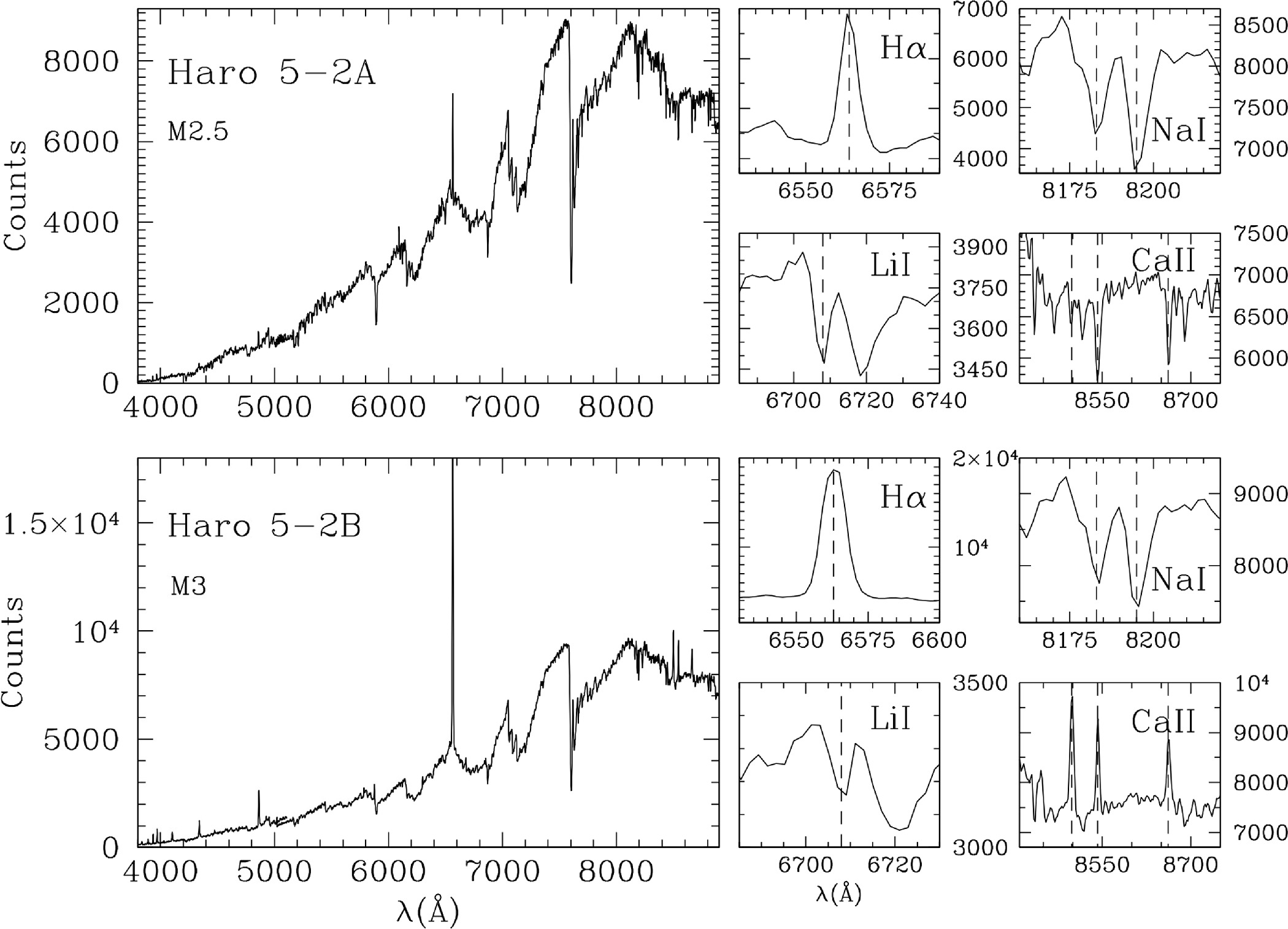

Caption: Figure 4.

Low-resolution optical spectra of the Haro 5-2A and B components, as obtained on UT 2021-11-19 with the GHTS instrument at SOAR. In the upper panels, the M2.5 WTTS Haro 5-2A component has Hα weakly in emission. In the lower panels, the accreting M3 CTTS Haro 5-2B component has a strong Hα emission line and the entire Balmer series is in emission. Lithium is moderately strong. Ca H and K are also found strongly in emission, as well as the He I lines. Finally, the Ca II near-IR triplet is in emission.

(The data used to create this figure are available in the online article.)

(The data used to create this figure are available.)
