Atomic Diffusion and Mixing in Old Stars. I. Very Large Telescope FLAMES‐UVES Observations of Stars in NGC 6397

  • Authors: A. J. Korn, F. Grundahl, O. Richard, L. Mashonkina, P. S. Barklem, R. Collet, B. Gustafsson, and N. Piskunov

Korn et al. 2007 The Astrophysical Journal 671 402.

  • Provider: AAS Journals

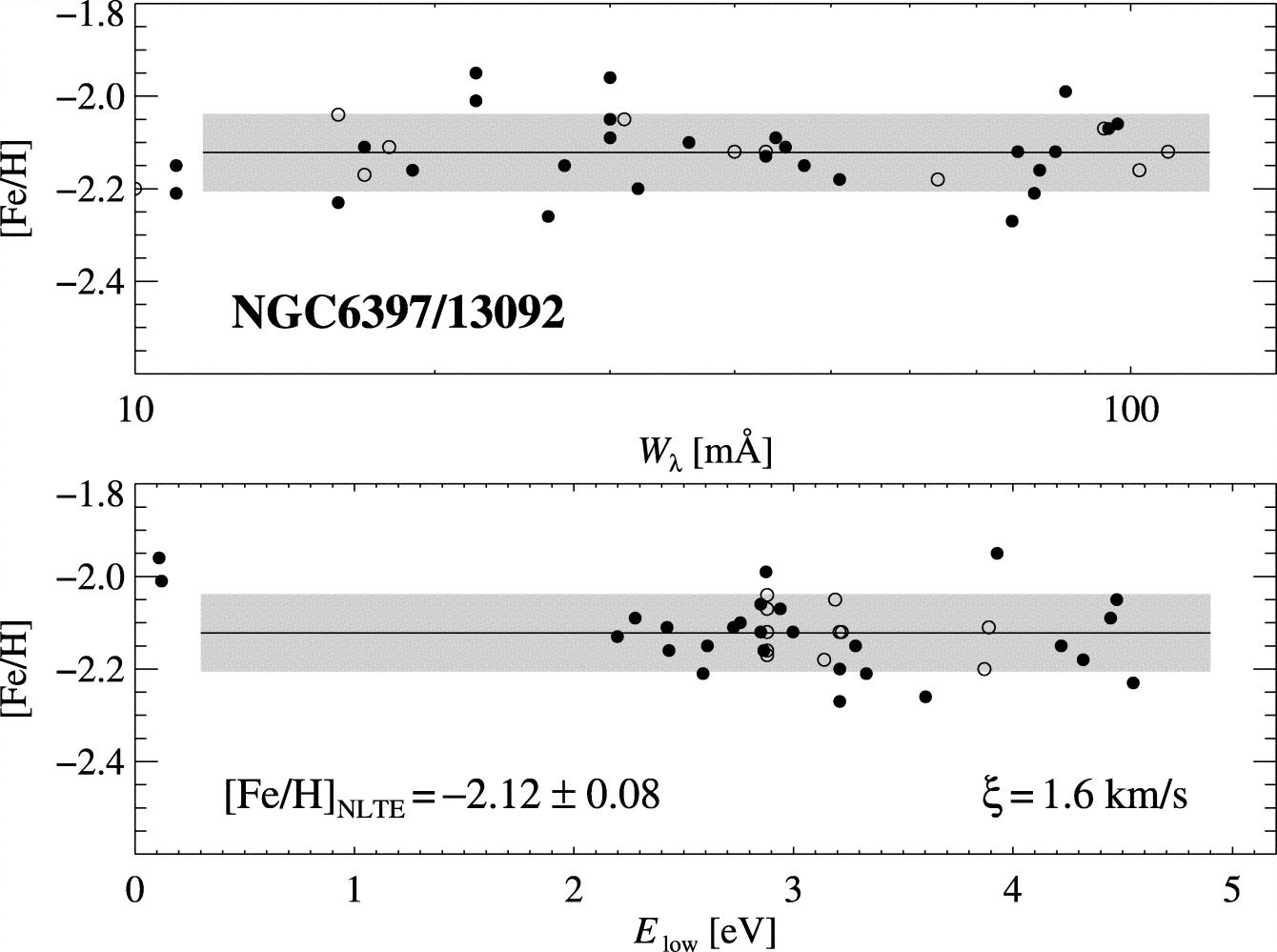

Caption: Fig. 5.

Individual line abundances of Fe I (filled circles) and Fe II (open circles) lines as a function of line strength (top) and excitation energy of the lower level ﹩E_{\mathrm{low}\,}﹩ (bottom) for a TOP star and an RGB star, respectively. While there is no obvious trend of [Fe/H] with ﹩E_{\mathrm{low}\,}﹩, this is not true for all targets and we do not use the excitation equilibrium as an additional effective temperature indicator.
