The Deuterium to Hydrogen Abundance Ratio toward a Fourth QSO: HS 0105+1619

Authors: John M. O'Meara, David Tytler, David Kirkman, Nao Suzuki, Jason X. Prochaska, Dan Lubin, and Arthur M. Wolfe

O'Meara et al. 2001 The Astrophysical Journal 552 718.

Provider: AAS Journals

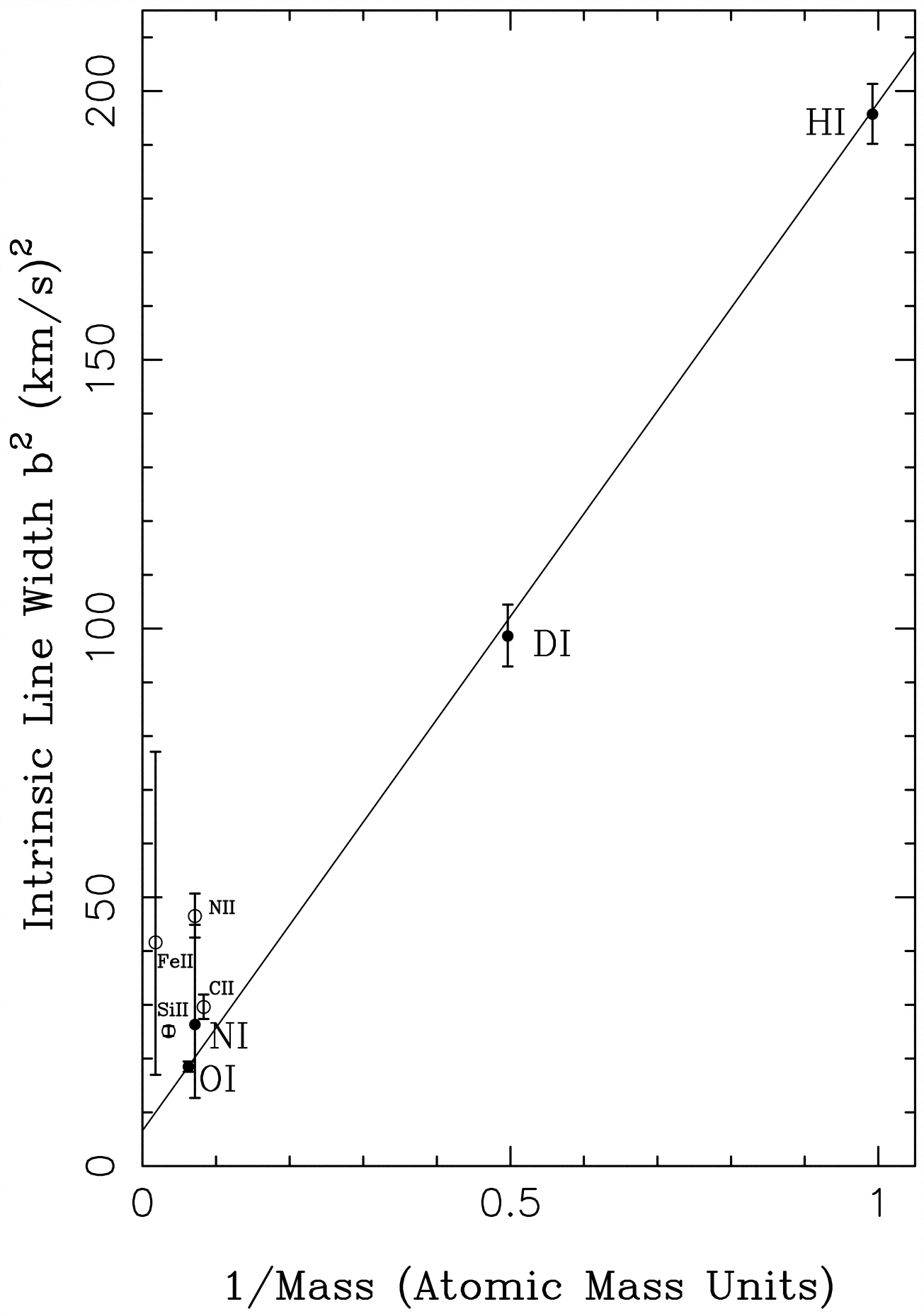

Caption: Fig. 10.

Intrinsic velocity widths measured for the neutral and low‐ionization ions. The solid line is the best fit to H I, N I, and O I alone. The slope of the line gives the temperature of the gas, ﹩T=1.15\times 10^{4}﹩ K, and the intercept gives the turbulent velocity, ﹩b_{\mathrm{turb}\,}=2.56﹩ km s⁻¹. The D I absorption comes from the same gas as the H I, N I, and O I.
