Magnetorotational Instability in Protoplanetary Disks. II. Ionization State and Unstable Regions

Authors: Takayoshi Sano, Shoken M. Miyama, Toyoharu Umebayashi, and Takenori Nakano

Sano et al. 2000 The Astrophysical Journal 543 486.

Provider: AAS Journals

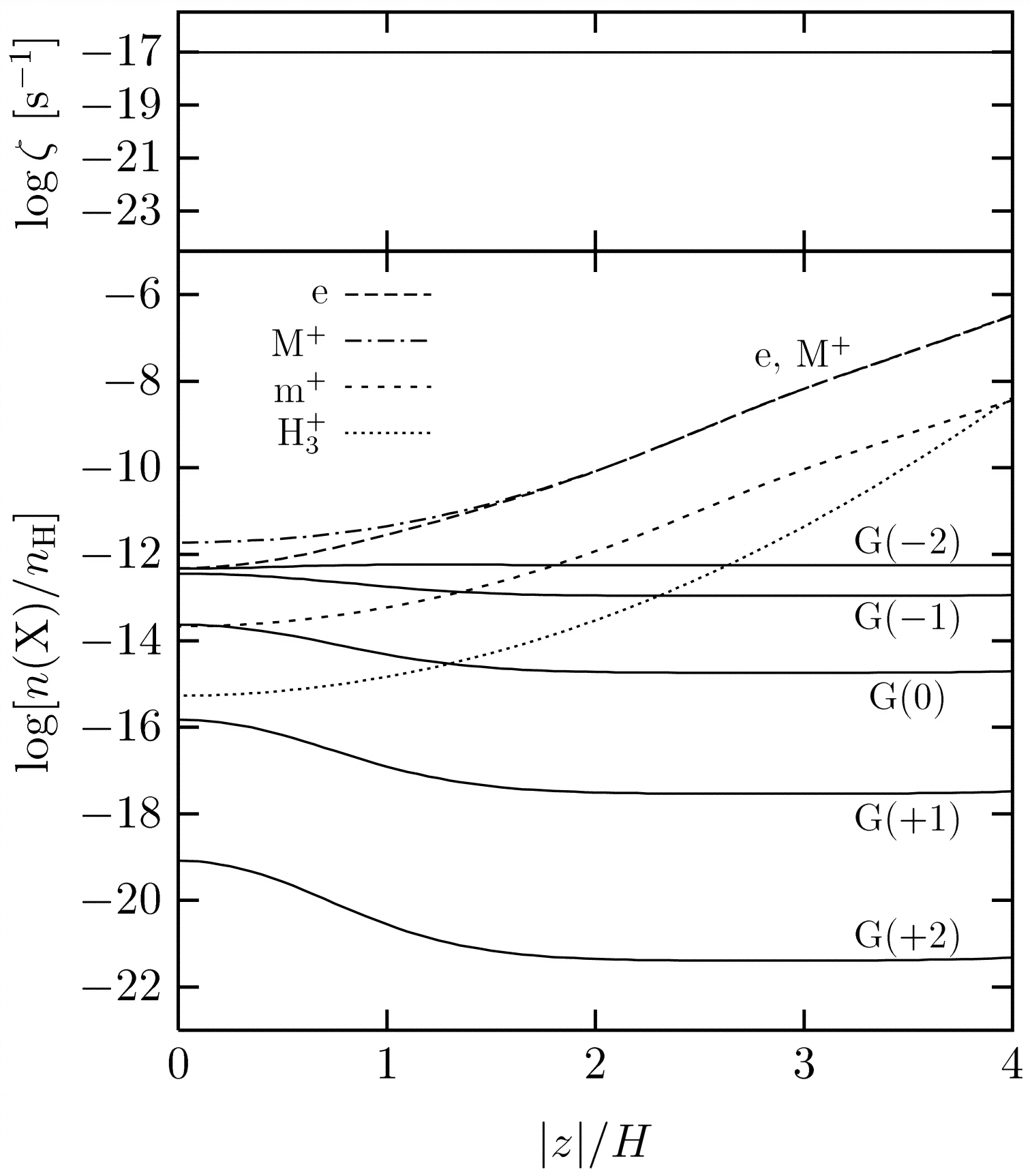

Caption: Fig. 5.

Relative abundances $n( X) / n_{\mathrm{H}\,}$ of some representative particles as functions of the height $\vert z\vert$ from the midplane at $r=30$ AU for the same disk as in Fig. 1. The top panel shows the ionization rate ζ.
