Caption: Figure 5.

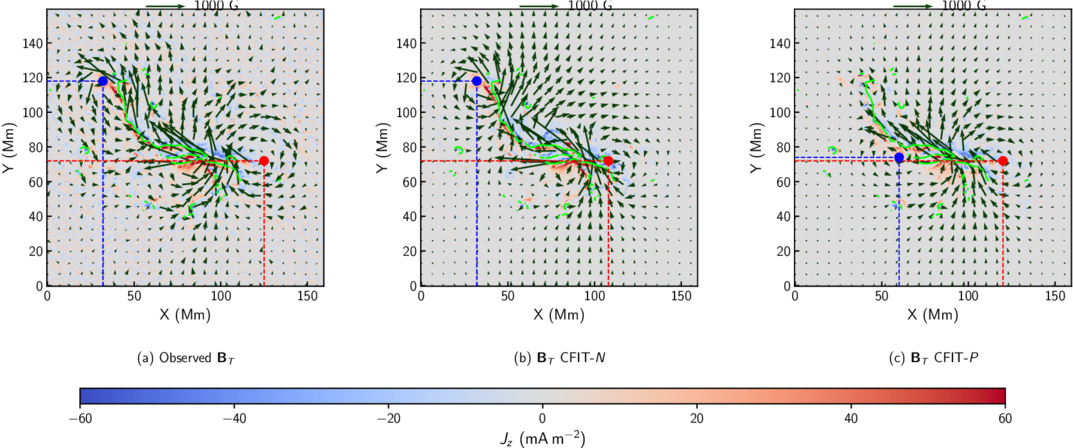

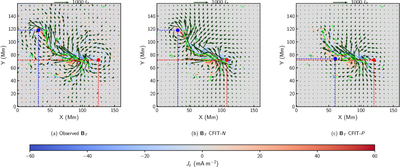

The toroidal field, BT(x, y), produced by the vertical currents, Jz(x, y, 0), derived from (a) the SHARP photospheric vector magnetogram, (b) the lower boundary data of the CFIT N solution, and (c) the lower boundary data of the CFIT P solution for AR 11429 on 2012 March 6 23:36 UT. The background color map in each panel shows Jz(x, y), the black contours show the main PILs corresponding to Bz(x, y) = 0, and the orange vectors show BT(x, y).
