Validating Coronal Magnetic Field Models Using Gaussian Separation

  • Authors: Abhinav G. Iyer, Michael S. Wheatland, Brian T. Welsch, Yang Liu, S.A. Gilchrist

Abhinav G. Iyer et al 2026 The Astrophysical Journal 1004 .

  • Provider: AAS Journals

Caption: Figure 4.

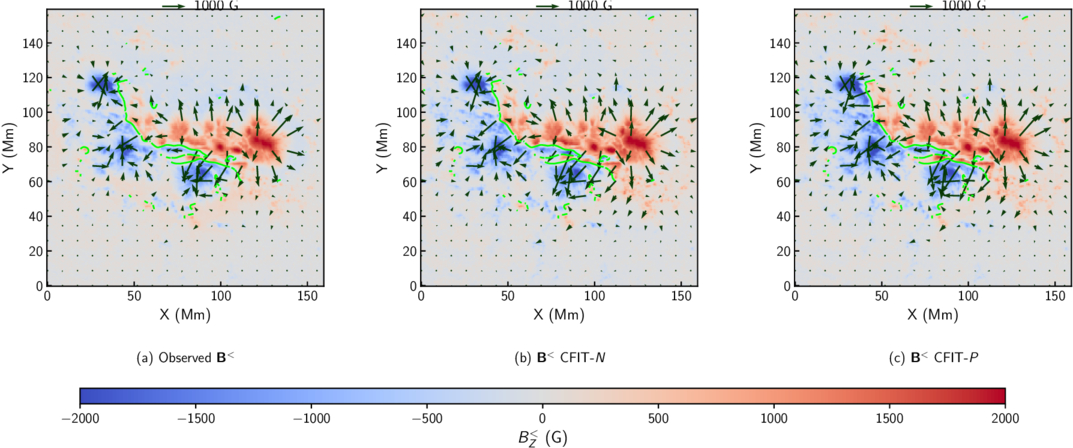

The photospheric signatures of subphotospheric currents, B<(xy, 0), derived from (a) the SHARP photospheric vector magnetogram, (b) the lower boundary data of the CFIT N solution, and (c) the lower boundary data of the CFIT P solution for AR 11429 on 2012 March 6 23:36 UT. The background color map in each panel shows ﹩{B}_{z}^{\lt }(x,y,0)﹩, the black contours show the main PILs corresponding to Bz(xy, 0) = 0, and the purple vectors show the horizontal component ﹩{{\boldsymbol{B}}}_{h}^{\lt }(x,y,0)﹩.
