VICS82: The VISTA–CFHT Stripe 82 Near-infrared Survey

  • Authors: J. E. Geach, Y.-T. Lin, M. Makler, J.-P. Kneib, N. P. Ross, W.-H. Wang, B.-C. Hsieh, A. Leauthaud, K. Bundy, H. J. McCracken, J. Comparat, G. B. Caminha, P. Hudelot, L. Lin, L. Van Waerbeke, M. E. S. Pereira, and D. Mast

2017 The Astrophysical Journal Supplement Series 231 7.

  • Provider: AAS Journals

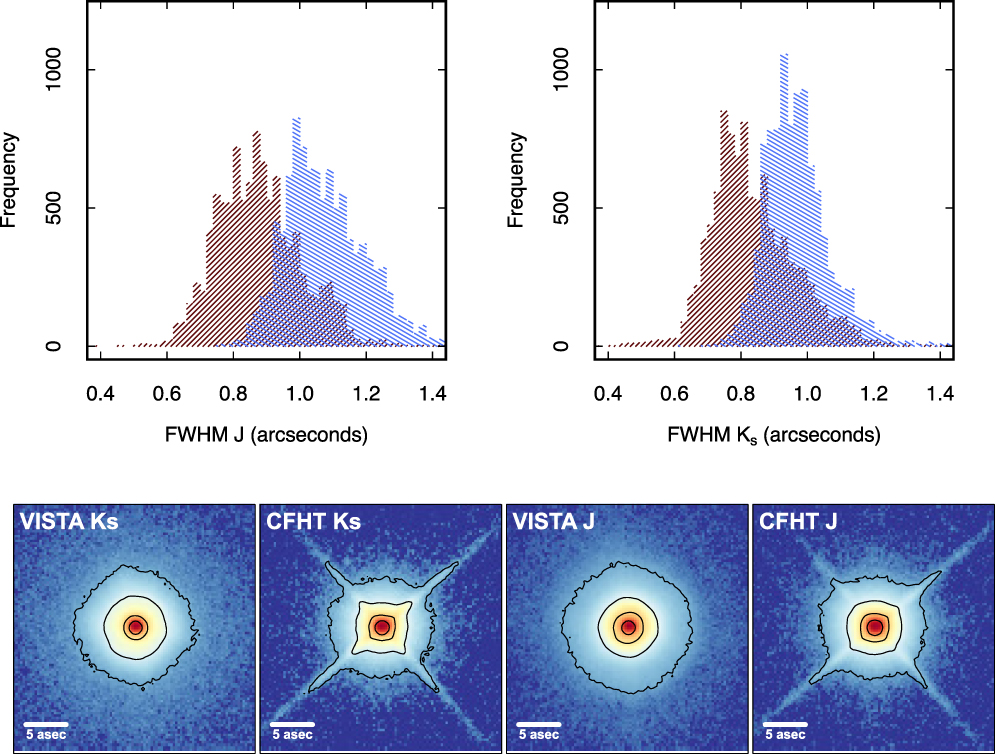

Caption: Figure 6.

Distribution of the average image quality for VICS82, evaluated as the FWHM of 104 point sources extracted from randomly selected image tiles for each of the CFHT (blue) and VISTA (red) observations. We achieve subarcsecond seeing across the majority survey in both J and ﹩{K}_{{\rm{s}}}﹩ bands (Table 2), with systematically better image quality in the VISTA tiles. The lower panels show the median average images of the 104 sources for each telescope and band. Each panel is ﹩45^{\prime\prime} ﹩ on a side (the scale bar shows ﹩5^{\prime\prime} ﹩), and the images are normalized to unity at the peak. The contours are at levels of 0.01, 0.1, 1, and 10% of peak. These average PSFs are used in the completeness simulation described in Section 2.6.
