Critical Mach Numbers for Magnetohydrodynamic Shocks with Accelerated Particles and Waves

• Authors: J. Martin Laming

J. Martin Laming 2022 The Astrophysical Journal 940 .

• Provider: AAS Journals

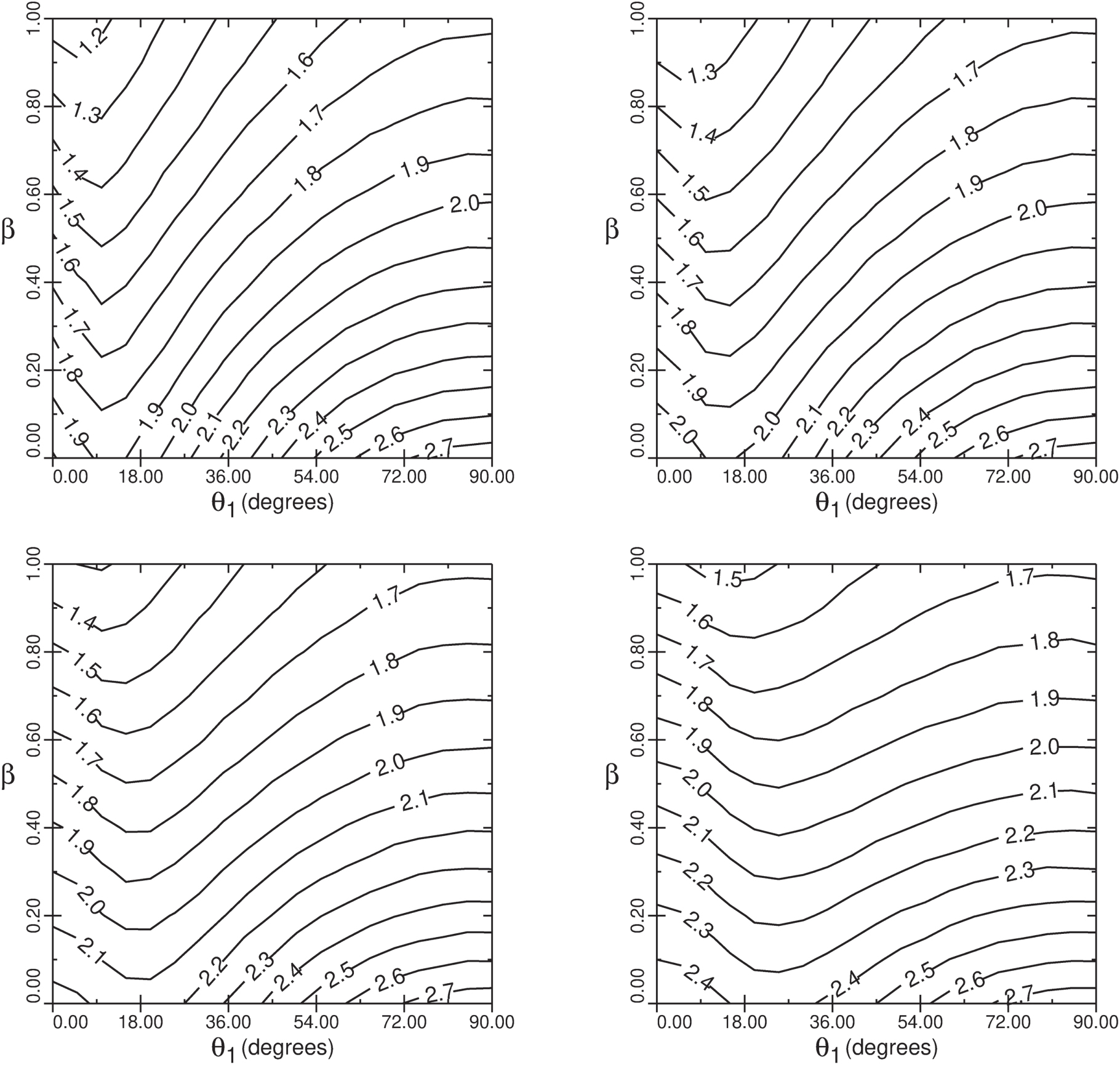

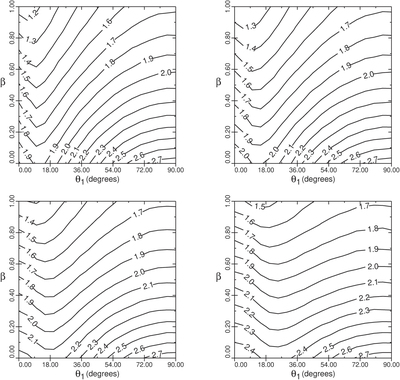

Caption: Figure 2.

Contour plots of the first critical fast Mach number in the plasma β - θ 1 plane for ﹩{E}_{\mathrm{CR}}/{\rho }_{1}{v}_{1| | }^{2}=0.025﹩, 0.05, 0.1, and 0.2 are shown in the top left, top right, bottom left, and bottom right panels, respectively.
