BD+14°3061: A Luminous Yellow Post-AGB Star in the Galactic Halo

  • Authors: Howard E. Bond

2020 The Astronomical Journal 160 274.

  • Provider: AAS Journals

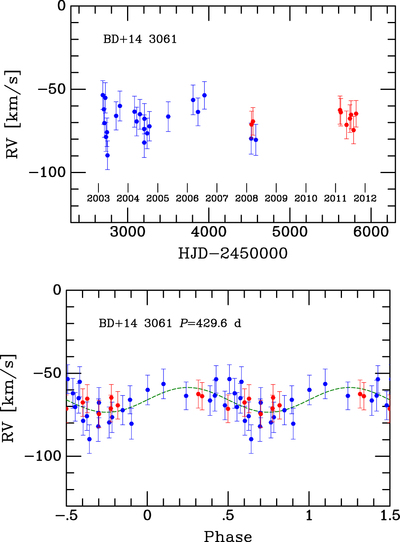

Caption: Figure 6.

Top panel: radial-velocity measurements of BD+14°3061 from 2003 to 2011, from the SMARTS 1.5 m spectrograph. Bottom panel: the velocities phased with a period of 429.6 days. A sinusoidal fit to the phased velocities is overlaid with a dashed green curve (see the text for the parameters). In both plots, measurements made with the “56/II”grating setup (2.2 Å resolution) are in blue, and measurements with the “47/IIb” setup (1.6 Å resolution) are in red.
