New Insights on Planet Formation in WASP-47 from a Simultaneous Analysis of Radial Velocities and Transit Timing Variations

  • Authors: Lauren M. Weiss, Katherine M. Deck, Evan Sinukoff, Erik A. Petigura, Eric Agol, Eve J. Lee, Juliette C. Becker, Andrew W. Howard, Howard Isaacson, Ian J. M. Crossfield, Benjamin J. Fulton, Lea Hirsch, and Björn Benneke

2017 The Astronomical Journal 153 265.

  • Provider: AAS Journals

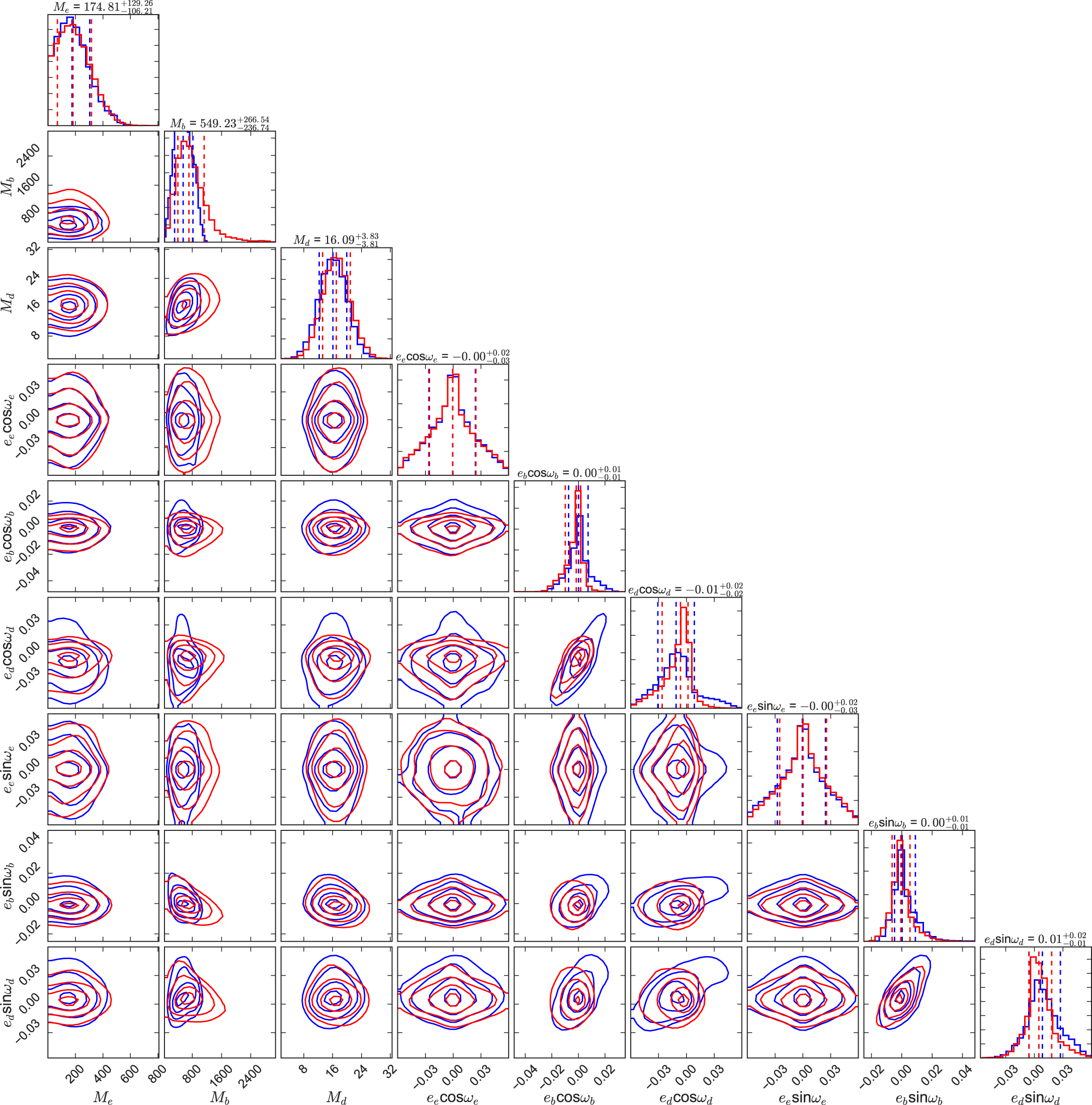

Caption: Figure 3.

Posteriors of the analyses of the TTVs alone. Blue: from the TTVFast N-body integrator MCMC; red: from the analytic TTV modeler TTVFaster MCMC. In both analyses, we limited ﹩e\lt 0.06﹩ for the three inner planets, in accordance with the stability analysis from B15. We also required Hill stability. We used jump parameters of the form ﹩\sqrt{e}﹩ cosω to avoid high eccentricity biases. The mass and eccentricity posteriors obtained from the analytic TTV analysis are in good agreement with those obtained with N-body modeling. The values above the histograms correspond to the N-body posterior median and ﹩1\sigma ﹩ bounds. The MCMC chains shown are available as  data behind the figure. The data used to create this figure are available.
