Australia Telescope Compact Array Radio Continuum 1384 and 2368 MHz Observations of Sagittarius B

Authors: David I. Jones, Roland M. Crocker, Jürgen Ott, Raymond J. Protheroe, and Ron D. Ekers

Jones et al. 2011 The Astronomical Journal 141 82.

Provider: AAS Journals

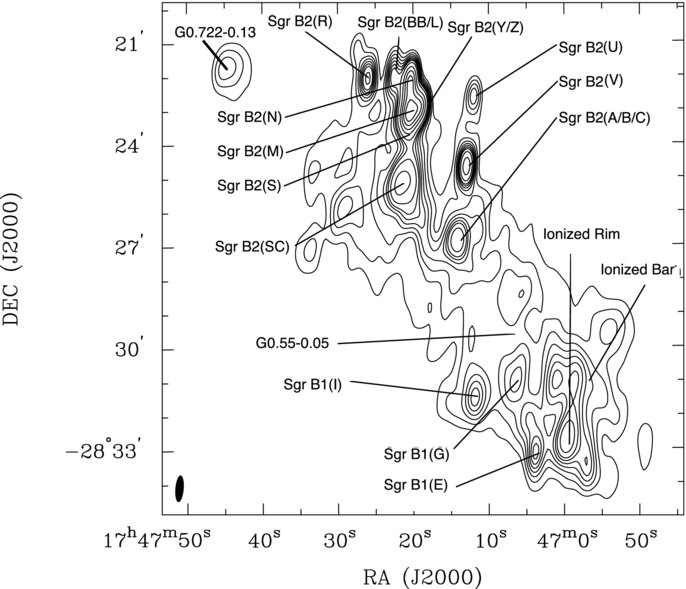

Caption: Figure 1.

Image of 1384 MHz total intensity contours of the Sgr B region showing the sources as labeled in Table 2. Contours are at 200, 250, 300, 350, 400, 450, 500, 600, 800, 1000, and 1600 mJybeam ⁻¹. The image has a resolution of 47'' × 14'', which is illustrated by the beam in the lower left-hand corner.
